The SP1300 Advantage: How This Wide Belt Grinding Machine Masters Challenging Finishes

duhui 2025-07-03

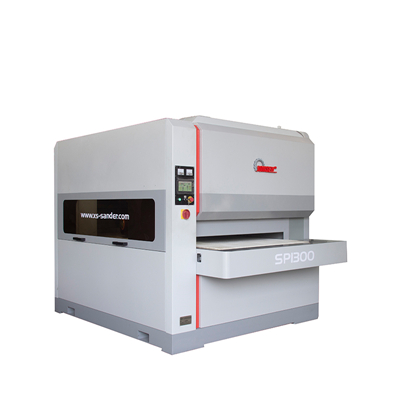

Wide Belt Grinding Machine SP1300

Unpacking the SP1300's Core: Rigidity Meets Flexibility in Wide Belt Grinding



The Wide Belt Grinding Machine SP1300 stands out as a truly versatile machine model. Its versatility stems from a combination of robust wide belt grinding capabilities and an ingenious supplementary system designed for intricate finishing tasks. This dual approach addresses the comprehensive needs of modern metal fabricators, ensuring not just flat surface quality but also precise edge and contour finishing.

At the heart of its ability to handle complex geometries is the planetary abrasive barrel station. This innovative station consists of 6 abrasive barrels, strategically arranged to work in tandem: 3 in clockwise rotation, and 3 in counter-clockwise rotation. This opposing rotational dynamic is crucial. It ensures that regardless of the workpiece's orientation or the direction of a curve, the abrasive barrels are always actively engaging the surface from multiple angles. This multi-directional attack further rounds edges and contours, achieving a level of uniformity and smoothness that is incredibly difficult, if not impossible, to achieve with static or unidirectional grinding methods.

This planetary system truly excels where conventional machines falter. It can easily resolve the difficult task of dealing with concave and convex workpieces, where a flat abrasive belt would only touch the highest points, leaving untouched areas. The flexible nature of the abrasive barrels allows them to penetrate and deeply deal with internal grooves, reaching into recesses that would otherwise require painstaking manual work or specialized tooling. For instance, in applications involving intricate laser or waterjet cut parts with complex internal cutouts, the SP1300 ensures every edge, inside and out, is consistently deburred and rounded. This level of finish is paramount for fatigue-sensitive components, as sharp edges are known stress concentrators that can lead to premature failure, a principle well-documented in material science and engineering, such as in ASTM E2448, "Standard Practice for Determining the Susceptibility to Stress Corrosion Cracking of Metals and Alloys by a Bent-Beam Method," which emphasizes the importance of edge integrity.

A further testament to the SP1300's gentle yet effective processing is its capability to deburr film and galvanized sheet without damage. These materials are notoriously delicate. Film-coated sheets can easily be scratched or have their coating removed by overly aggressive grinding, while galvanized surfaces can suffer damage to their protective zinc layer. The controlled, multi-directional action of the planetary barrels, combined with precise pressure regulation, allows for effective deburring and edge rounding without compromising the integrity or surface aesthetics of these sensitive materials. This capability is vital for industries like automotive, HVAC, and construction, where pre-coated or galvanized materials are widely used.

The machine's processing efficiency is significantly boosted by its versatile material feeding systems. Whether it's a vacuum feeding system for thin, non-ferrous sheets that require precise holding, or a rotary custom feeding system designed for plates and workpieces of opposite sex (irregular shapes), the SP1300 offers superior processing efficiency. These automated feeding mechanisms not only increase throughput but also enhance operator safety by minimizing direct handling of sharp or hot workpieces. This automation directly addresses the common pain points of inefficiency and inconsistency associated with manual grinding, flying dust, and the uneven finish of workpieces.

The output from the SP1300 means that the workpiece is perfectly prepared to enter the next process, such as hemming, surface spraying, or welding. This seamless transition eliminates the need for any post-grinding manual rework, which is often characterized by inefficiency, uncontrolled flying dust, and inconsistent grinding. By providing a clean, consistent, and precisely finished part, the SP1300 optimizes the entire manufacturing chain, contributing to higher quality final products and reduced production costs.




Technical Advantages and Operational Efficiency of the Wide Belt Grinding Machine SP1300



The Wide Belt Grinding Machine SP1300 is a powerhouse of finishing technology, delivering substantial technical advantages and operational efficiency:

  • Dual Grinding Capabilities: It combines the power of a traditional wide belt for flat surface deburring and finishing with a specialized planetary abrasive barrel station for intricate edge and contour work.

  • Planetary Abrasive Barrel System: The 6-barrel configuration with opposing rotations ensures comprehensive, multi-directional abrasive action, leading to perfectly rounded edges and thorough deburring even on complex internal and external contours.

  • Complex Geometry Handling: The machine is specifically engineered to resolve challenges associated with concave/convex workpieces and deep internal grooves, ensuring uniform finishing where other machines struggle.

  • Delicate Material Processing: Its ability to deburr and finish sensitive materials like film and galvanized sheets without damage preserves their surface integrity and protective coatings.

  • Versatile Feeding Systems: The SP1300 offers options for vacuum feeding (for thin/non-ferrous materials) and rotary custom feeding (for irregular workpieces), optimizing handling and throughput for diverse part geometries.

  • Automated and Clean Operation: It significantly reduces reliance on manual grinding, leading to a cleaner work environment with less airborne dust and improved operator safety.

  • Enhanced Downstream Process Preparation: The machine delivers workpieces that are consistently deburred, deslagged, and edge-rounded, perfectly preparing them for subsequent processes like bending, welding, painting, or assembly, thereby reducing rework and improving overall product quality.

These technical attributes translate directly into tangible operational benefits for manufacturers. Faster cycle times, higher throughput, consistent quality, reduced labor costs, and a safer, cleaner working environment all contribute to a compelling return on investment.




Strategic Procurement and Industry Impact of the Wide Belt Grinding Machine SP1300



In the highly competitive landscape of modern manufacturing, companies are constantly striving for superior product quality, enhanced production efficiency, and improved safety standards.1 The Wide Belt Grinding Machine SP1300 is positioned as a strategic asset for organizations looking to elevate their metal finishing capabilities, particularly when dealing with complex or large-format workpieces.





When evaluating the acquisition of such a sophisticated grinding machine, key considerations include:

  • Workpiece Complexity: If production involves a significant volume of parts with complex contours, internal cutouts, or non-flat surfaces, the SP1300's unique capabilities make it an ideal choice.

  • Material Sensitivity: For those working with delicate, pre-coated, or galvanized sheets where surface integrity is paramount, the machine's ability to deburr without damage is a critical advantage.

  • Throughput Requirements: Manufacturers should assess current and projected production volumes. The SP1300's efficient processing and automated feeding systems are designed to maximize throughput and eliminate manual bottlenecks.

  • Quality Standards: If an industry demands extremely consistent edge rounding and surface preparation for subsequent high-precision processes (e.g., aerospace, medical devices), the SP1300 delivers that consistency.

  • ROI from Automation: Calculating the savings from reduced labor, improved quality (less scrap/rework), and increased overall efficiency compared to current manual or less advanced automated methods is essential.

The industry impact of machines like the SP1300 is profound. By transforming a bottlenecked, labor-intensive, and often inconsistent finishing stage into a highly efficient, precise, and automated process, it empowers manufacturers to produce higher quality components faster. This not only strengthens their market position but also enables them to undertake more complex and challenging projects with confidence.




Product FAQ: Understanding Your Wide Belt Grinding Machine SP1300



Here are some common questions about the Wide Belt Grinding Machine SP1300 and its capabilities, offering insights from an experienced perspective:

  • What safety certifications does the Wide Belt Grinding Machine SP1300 have?

    Safety is paramount in all machine designs. The SP1300 is engineered to comply with stringent international safety standards. This includes comprehensive guarding, readily accessible emergency stop mechanisms, and adherence to directives such as CE marking for the European market. Compliance with best practices derived from standards like ISO 12100 (Safety of machinery – General principles for design – Risk assessment and risk reduction) is foundational to its design, ensuring a secure operating environment.

  • Can you explain the warranty policy for the SP1300?

    Confidence in the robust design and performance of the SP1300 is reflected in its warranty. Typically, the Wide Belt Grinding Machine SP1300 comes with a standard [e.g., one-year] warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty options and comprehensive service contracts are also available to ensure continuous support and peace of mind for the long-term investment.

  • What is the quality control process during manufacturing of the SP1300?

    Every SP1300 undergoes a meticulous multi-stage quality control process. This begins with rigorous inspection of all incoming raw materials and components. Throughout the assembly phase, critical sub-assemblies, particularly the wide belt system and the planetary abrasive barrel station, are subjected to in-process checks. Finally, each completed machine undergoes extensive operational testing to verify its performance, precision, and consistency across its full range of capabilities before it is cleared for shipment.

  • How does the SP1300 handle internal grooves and complex contours?

    The unique planetary abrasive barrel station, featuring 6 rotating barrels (3 clockwise, 3 counter-clockwise), is specifically designed for this. The flexible abrasive barrels conform to intricate shapes, allowing them to effectively reach into and deburr internal grooves and consistently round complex concave and convex contours that a standard wide belt might miss.

  • What type of feeding systems are available for the SP1300?

    The SP1300 offers versatile feeding options to suit different workpiece types. It can be equipped with a vacuum feeding system, ideal for securely holding thin or non-ferrous sheets. Alternatively, a rotary custom feeding system is available, specifically designed for efficiently processing irregular-shaped plates and workpieces.

  • Can the SP1300 really deburr film and galvanized sheets without damage?

    Yes, this is a key advantage. The controlled pressure, multi-directional action of the planetary barrels, and careful selection of abrasive media allow the SP1300 to effectively deburr and round edges on sensitive materials like film-coated or galvanized sheets without scratching the film or damaging the protective zinc layer.

  • How does the SP1300 reduce airborne dust?

    Compared to manual grinding, the SP1300 operates within a more contained environment. It is equipped with efficient dust extraction ports that, when connected to an appropriate external dust collection system, significantly capture airborne particles and metal fines generated during grinding, contributing to a cleaner and healthier workspace.

  • What kind of abrasives does the SP1300 use?

    The wide belt station uses standard abrasive belts of various grits depending on the desired finish (coarse for aggressive removal, finer for polishing). The planetary abrasive barrel station utilizes specialized abrasive blocks mounted on the barrels, which are also available in different grits and materials to suit specific applications and desired edge radii.

  • Is the SP1300 suitable for both large-scale production and smaller custom jobs?

    While designed for efficiency in processing large and irregular workpieces, its versatility and precision make it suitable for both high-volume production lines and specialized custom fabrication shops that require consistent quality on unique parts.

  • How does the SP1300 contribute to downstream processes like welding or painting?

    By consistently delivering deburred, deslagged, and uniformly edge-rounded parts, the SP1300 ensures superior surface preparation. This leads to better weld penetration, improved adhesion and longevity of paint or powder coatings, and easier, safer handling for subsequent assembly or finishing steps, significantly reducing rework and enhancing overall product quality.




Navigating the Future of Metal Finishing with the SP1300





The Rise of Automated Finishing for Complex Geometries



For decades, the finishing of parts with intricate shapes, internal cutouts, and non-linear edges remained a manual, labor-intensive bottleneck in metal fabrication. While flat grinding machines evolved, the precision and consistency required for complex geometries demanded a human touch – often leading to inconsistent quality, high labor costs, and safety concerns. The advent of machines like the Wide Belt Grinding Machine SP1300, with its planetary abrasive barrel system, represents a paradigm shift. This technology is crucial for modern manufacturing, where advanced cutting methods produce increasingly complex parts, necessitating equally advanced and automated finishing solutions to maintain throughput and quality standards.2 This trend aligns with the broader industry movement towards Industry 4.0 and smart manufacturing, where automation of all production stages is key.







Deburring Film and Galvanized Sheets: A Niche Solved by the SP1300



One of the often-overlooked yet critical challenges in metal finishing is the deburring and edge rounding of sensitive materials such as film-coated or galvanized sheets. These materials are widely used due to their aesthetic appeal or corrosion resistance, but their protective layers are susceptible to damage from aggressive abrasive processes. Manual methods are slow and prone to error, while many conventional automated systems lack the delicacy required. The Wide Belt Grinding Machine SP1300 specifically addresses this niche but vital requirement. Its ability to effectively remove burrs and round edges without compromising the film or zinc coating provides a significant advantage for manufacturers in sectors like automotive, construction, and appliance manufacturing, preventing costly rework or material waste.



Procurement Wisdom for Advanced Grinding Solutions



When considering an investment in a sophisticated machine like the Wide Belt Grinding Machine SP1300, strategic procurement goes beyond just the initial price tag. Manufacturers should consider the Total Cost of Ownership (TCO), which includes consumables, maintenance, energy consumption, and crucially, the long-term savings generated by increased efficiency and reduced rework. Furthermore, assessing the vendor's reputation, post-sales support, spare parts availability, and technical assistance is paramount. A machine as versatile as the SP1300 can transform an entire finishing department, making a robust support partnership with the manufacturer as critical as the machine's technical capabilities. Ensuring a team receives adequate training to fully leverage the SP1300's advanced features is also an investment that yields significant dividends.
