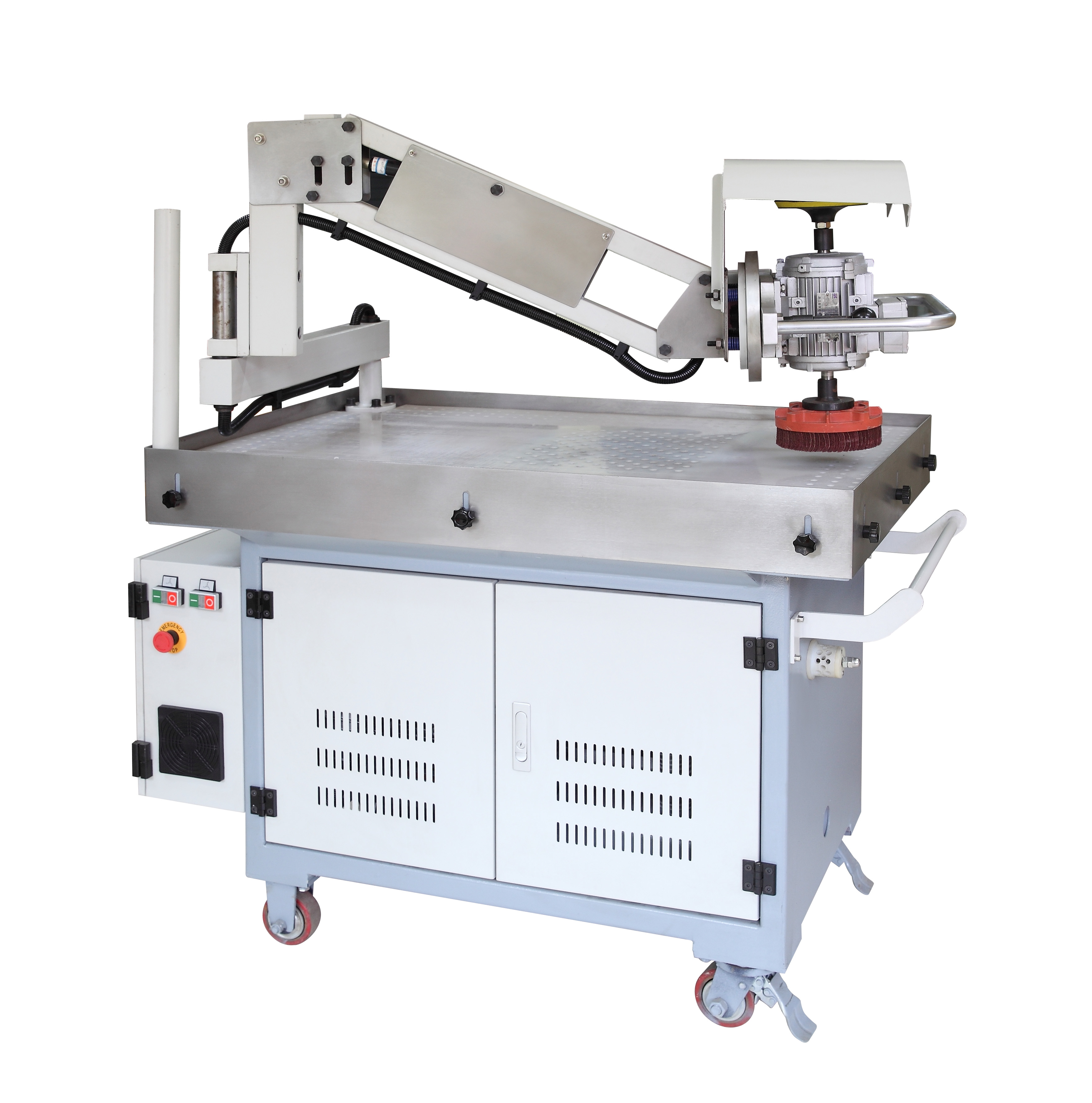

数控去毛刺SD-H

CNC去毛刺SD-H适用于小批量零件去毛刺和修边。它比传统的手持式角磨机或轨道砂光机具有更好的工作效率和更稳定的性能。它在激光切割、冲孔、冲压和一些平面加工零件的去毛刺和修边方面做得非常好。

cnc deburring

CNC去毛刺-琼森砂光机

Product details presentation

cnc deburring

Machine characteristic overview

    CNC deburring



1.       CNC deburring SD-H utilizes air spring support zero gravity swing arm design. The operator simply needs to grab the handles on the working head, and apply certain pressure on the part to start deburring and edge rounding freely.



2.       The working table also has partial vacuum area for accommodating small parts. Simply position the parts on the vacuum area, then the strong downdraft force will firmly hold the parts in place.



3.       CNC deburring SD-H is equipped with dual abrasive disk and brush configuration which were driven by the same motor. Fast switching between the disk and brush, simply turn 180°, and then lock it. Patented design of quick consumable change of the abrasive disk and brush.



4.       It is also capable of processing oversize parts (larger than the working table), as long as it is within the swing arm span.



CNC deburring Machines

JONSEN SANDER is one of the leading Sheet Metal Deburring Machines, Wide Belt Grinding Machine, CNC deburring Manufacturers, Factory and Suppliers, Our product quality has passed international certification, and the price is affordable, welcome to call and order our products wholesale.



Find Auto deburring machine for your production line Get more details of CNC deburring from JONSEN SANDER and contact us to get price quotation.



JONSEN SANDER is a company specializing in the production of Auto deburring machine. CNC deburring products are sold all over the world. Friends from all walks of life are welcome to visit JONSEN SANDER for technical exchanges and business negotiations. JONSEN SANDER sincerely hopes to work with you to create a better future.

Technical datasheet



Vacuum area





330x300mm





Working head power





0.75kw





Maximum part dimension (inside the working table)





1000x800mm





Work head





2





Maximum part dimension (within the swing arm span)





1500x1500mm





Dust extraction capacity required





1000m3/h





Swing arm span





1500mmx360°





Total power





4.05kw





Part thickness range





1-150mm





Machine dimension





1700x1000x1700mm
